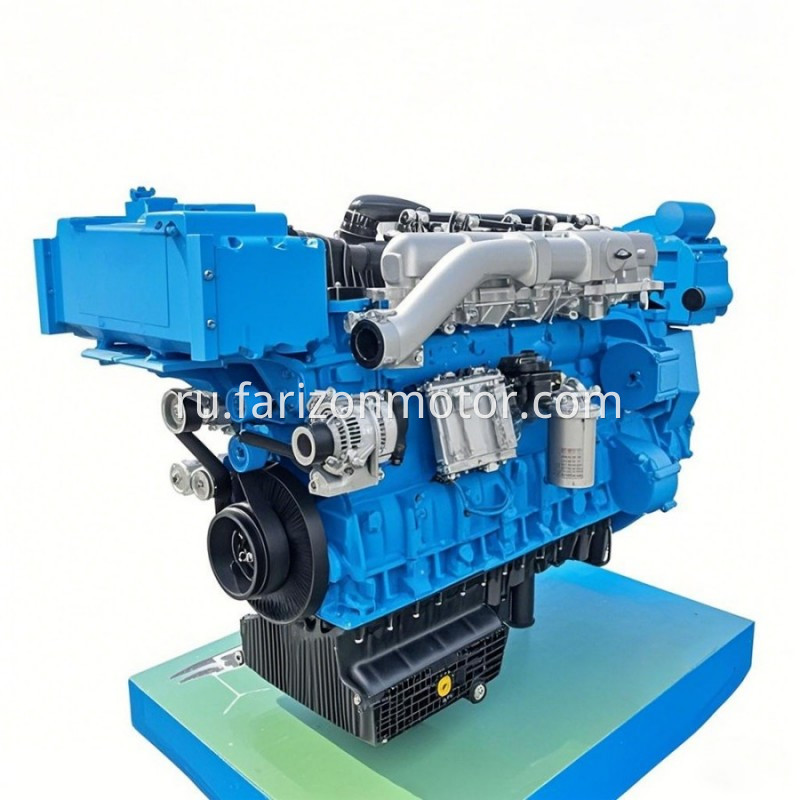

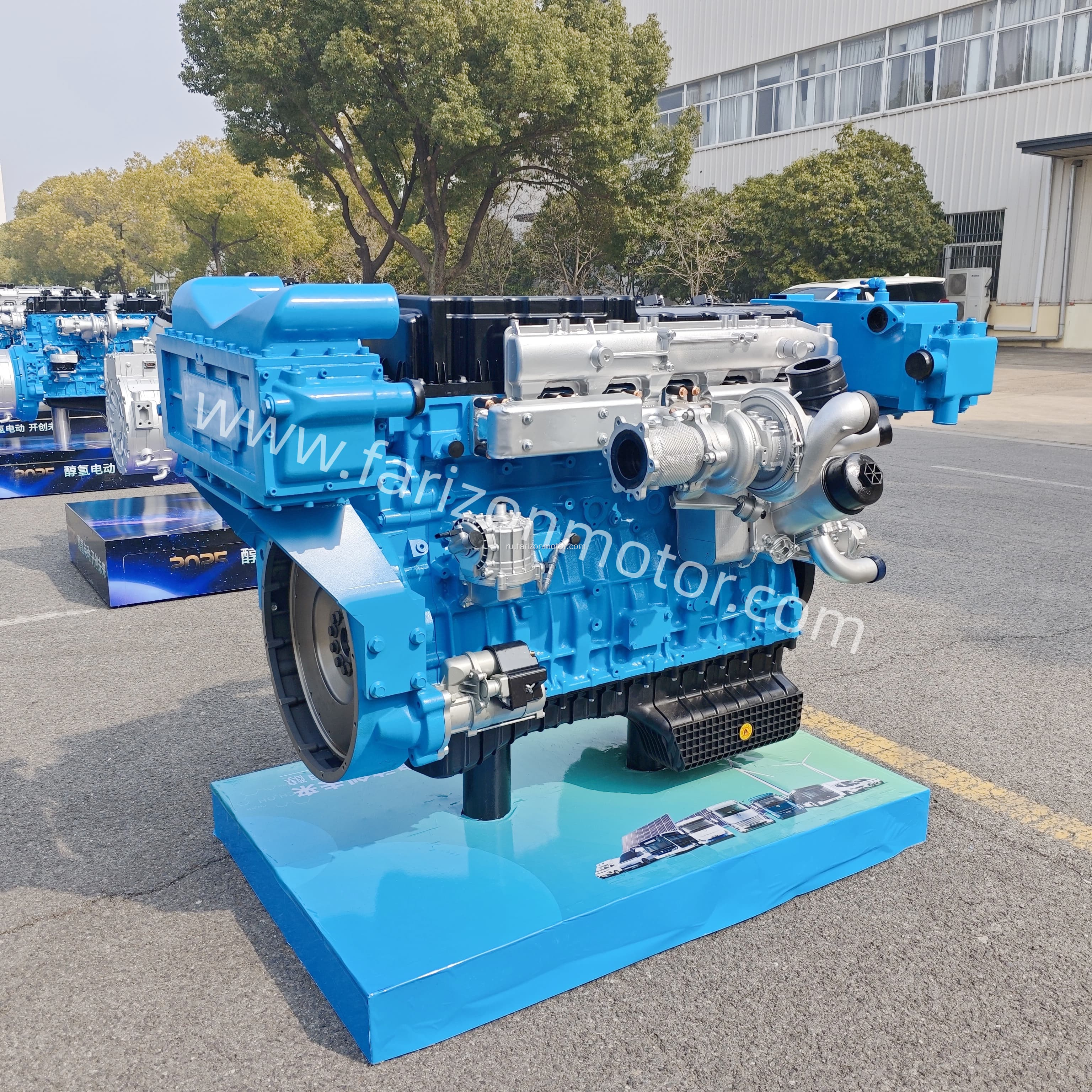

Модель: GS06M
| Item | Unit | Parameter |
| Type | - |
In-line,four-stroke,liquid-cooled,supercharged and intercooled
|
| Rated power/speed | kW/rpm | 180/2000 |
| Maximum torque/speed | Nm/rpm | 950/1200-1500 |
| Maximum no-load speed | r/min | 2200±50 |
| Ider speed | r/min | 700±50 |
| Total piston displacement | L | 5.19 |
|
Number of cylinders-bore*stroke
|
mm | 4-112*150 |
| Work order | - | 1-3-4-2 |
|
Direction of rotation(from the flywheel end)
|
- | Counterclockwise |
| Engine nameplate quality | kg | 525(without oil or water) |
| Fuel type | - |
Main fuel:M100 methanol
Auxiliary starting fuel:92#gasoline
No gasoline auxiliary starting device is used,and coolant heating is required to ensure engine starting
|
| Exhuast temperature | ℃ | ≤620 |
| Range extender voltage platform | V | 600 |
| Range extender rated current | A | 220 |
| Range extender maximum power generation rate | kW | 150 |
